●Hydro-dynamnically mounted main spindle, oil film prevents contact between spindle and bearing

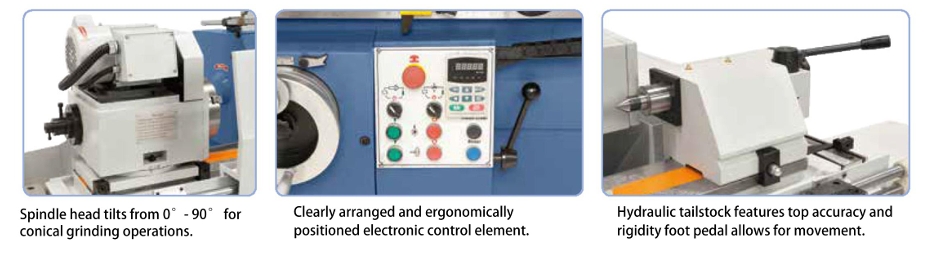

●For conical grinding operations table can be tilted - scale allows precise adjustment to desired position
●Guideways in X- and Y-axis are precisely polished and manually finished
●Longitudinal table guide and grinding spindle stock cross guide each feature V- and flat guiding●Achieve smooth results at various grinding operations due to the precisely adjusted spindle head and solid grinding spindle stock
●Strong reinforcements and generously designed walls make the machine base resistant to temperature fluctuations and deformations
●Oil film between spindle and bearing keeps the vibrations to a minimum to achieve top results and high accuracy.
●Longitudinal movement of table is either manual (by hand wheel) or automatic (by hydraulic feed)
●Stepless feed adjustment with selective programnmable stop at end of each table movement
●Hydraulic or manual repositioning of grinding spindle stock
●Grinding spindle features bearings on both sides and adjustable sliding flat grids
●Swivelling spindle stock (up to 180°)for inside grinding operations

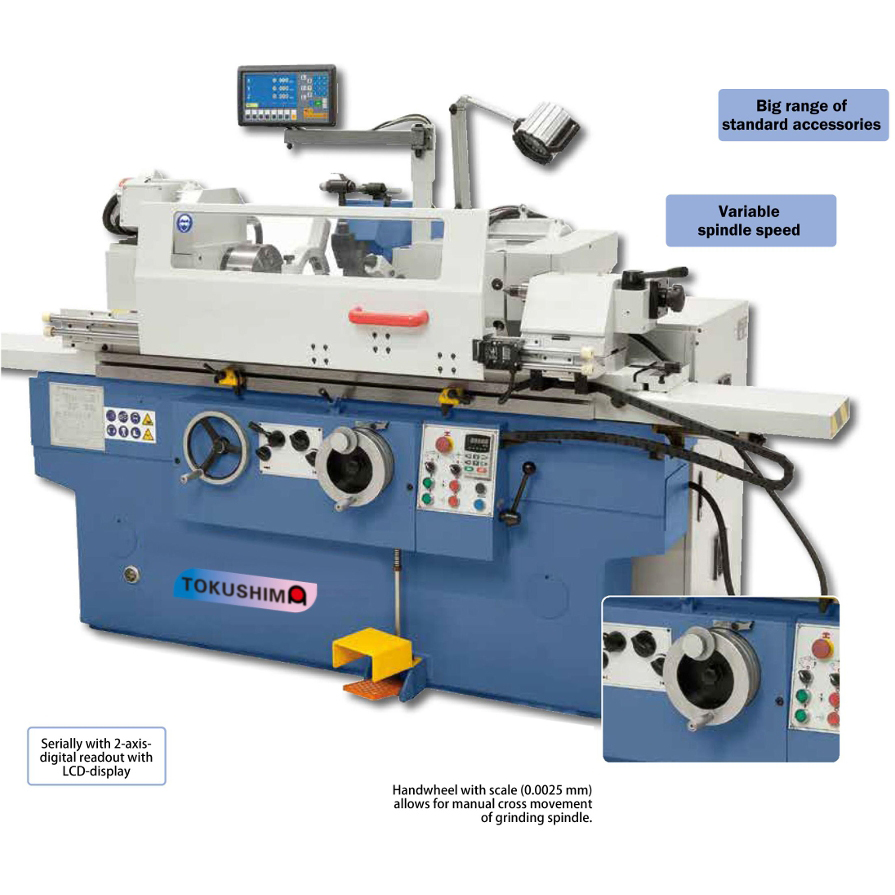

The URS 800 N univercal cylindrical grinding machine features an excellent range of standard accessories which includes an inside grinding device and a 2-axis digital readout. Designed predominantly for model and tool making,this model is popular for the production of small series.
