ロータリーテーブルタイプ

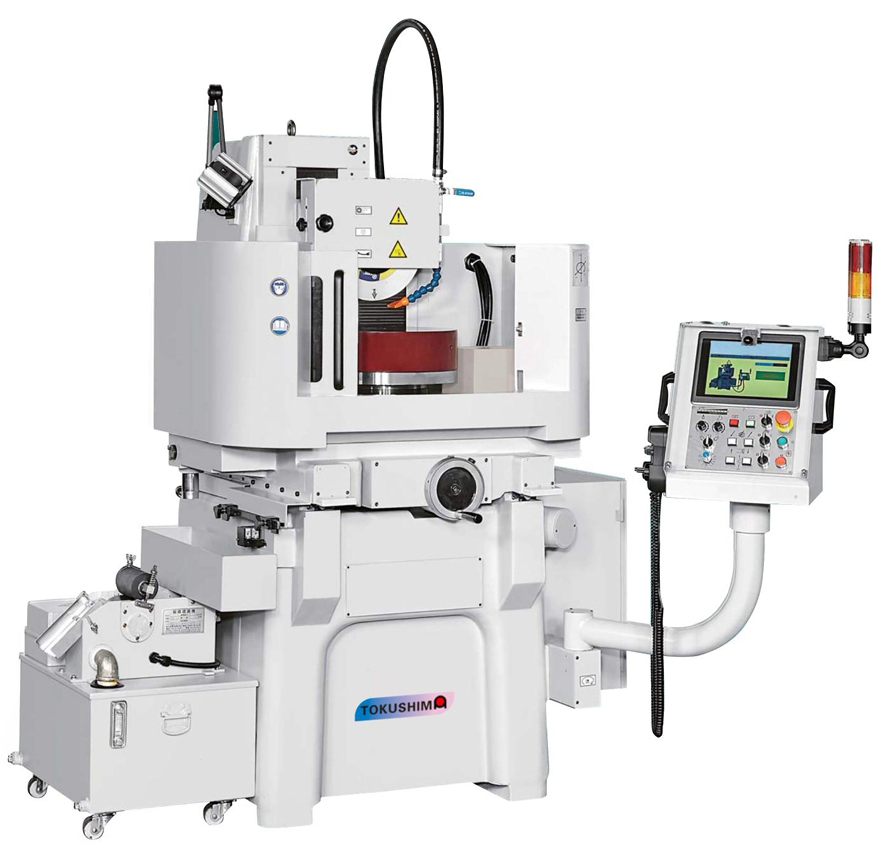

CNC PRECISION SURFACE GRINDER ROTARY TABLE TYPE
Super high precision accuracy with 3 axes servo drive.
·Meehanite Castings-All major castings are annealed and stress relieved for deformation-free on the structure, to ensure life time accuracy and maximum stability.
·Double V slide ways for horizontal axis.
. 3 axes AC servo motor drive. To perform high precision efficiently by optimizing the capacity when machining.
.Automatic wheel dressing. To dress wheel coarsely, finely, and auto compensation.
·Minimum down feed, 1 μ down feed on control screen.
·Machining feature, flat surface grinding and step surface grinding.
Super high precision by rotary grinding
·Testing work piece (Ф70mm X 50mm, 6 pcs) flatness deviation under 2 μ.
.Surface roughness is under 0.2Ra.
Constant peripheral velocity of rotary table
·While wheel head moving to rotary table center the rotating speed of table will be increased automatically based on the wheel head positionto keep same peripheral velocity. It's more effectively high precision of machining, and less consumption of wheel.
Rotary table advantages
. Rotary grinding, less time consumed, higher efficiency, better accuracy, flatness deviation under 2 μ, and it's 3 times machining efficiency more than conventional surface grinder.
