Easy and friendly operation.

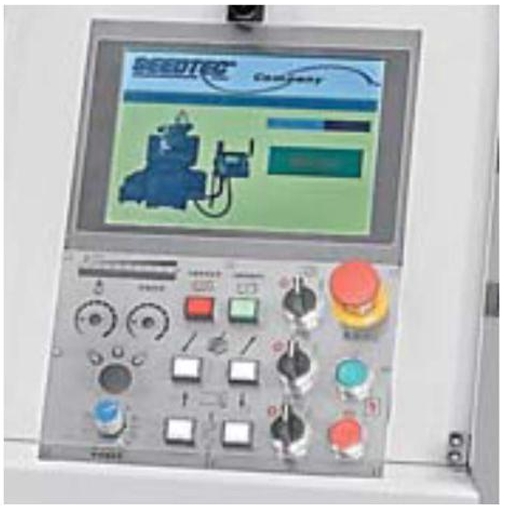

. Easy to use control equipped with 10" colortouch screen and conversational machining parameters input.
·Convenient to touch work piece and test grinding by MPG
.Allows two-step machining including rough and fine grinding. This combines with 9 times(Max) setting for spark-out to achieve higher accuracy and better efficiency.
.The spindle position displays on the screen at any time, and permits zero position settingat any position featuring similar function as a liner scale.

The spindle down feed provide 5 modes:
1.Rapid feed(230mm/min)
2.Jog feed (According to F setting value)
3.Micrometric feed (1u / per time)
4.MPG feed, Z-axis feed rate includes 1μ,10μ,and100μ, and Y-axis feed rate includes1μ,10μ,and100μ
5.Fully automatic.
.After spindle moved or wheel dressed, it does not affect the original set feed amount.Therefore, no need to make a resetting.
.The spindle raised to "a" position (can be set)above the zero position.
.Once spindle raised to "a" position then fast descending to grinding position, pressing automatic cycle key, the machine performs automatic cycle operation. It's safe and convenient operation.
.Total feed amount and machining data settings are directly entered through valueNo calculation is required and no machining residual for operation convenience.

· Illustrative control panel and diagrammatic feed instruction combined with conversational input through flash light featuring humanized operation. The operation panel is easy tolearn and operate.

. After machining finished, the operator may select below conditions:
a.The machine does not stop but the warning lamp flashing
b.Machine stopped and power off, this modeis suitable for the last setting of grinding before job finished everyday.
