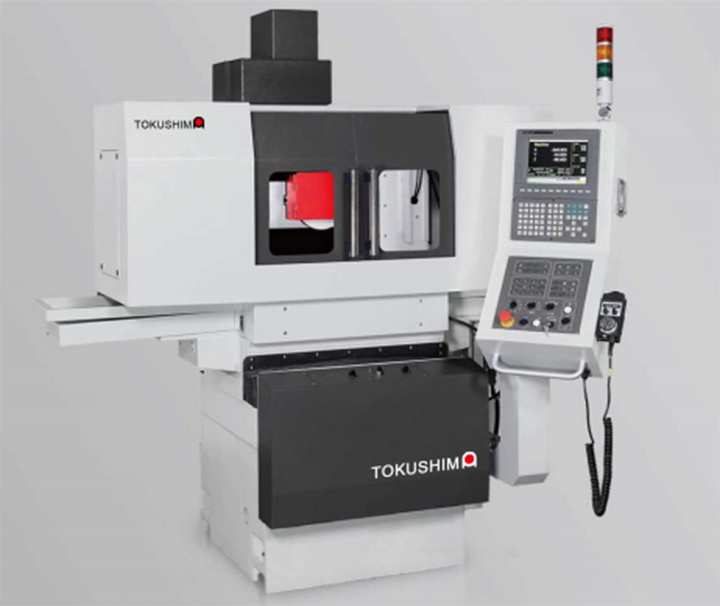

SMART. EASY series machines can be configured   as 2 or 3 axes CNC.

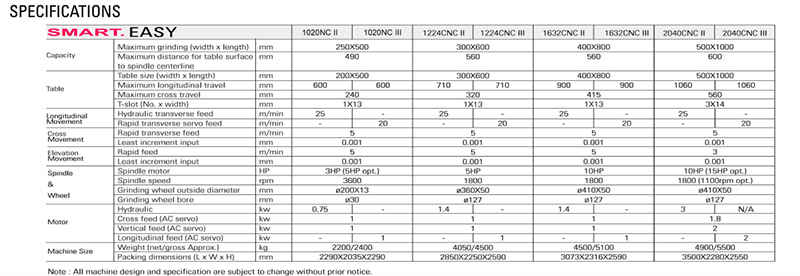

Table size ranges are 200×500, 300×600 and 400×800 mm. to max.600×3000mm.

2 axes(II) : Table driven by hydraulic cylinder

3 axes(III): Table driven by servo motor + ballscrew

Features：

*The EASY series CNC surface and profile grinder with its EASY to learn,EASY to program, shop floor language, is indeed an innovation for   close- tolerance, repeatable, multi- purpose grinding. The EASY Series incorporates all the excellent features required for high precision grinding. Due to the machines versatility, it is suitable for numerous high accuracy, complex contouring and forming applications.

*The operator doesn't need to use G or M codes to program the grinding functions. You just input the grinding values into the graphic conversational screen for both grinding and wheel dressing cycles.

*The EASY control also allows for G or M code programing or down loading programs from a CAD file through the USB ports.

Control Features：

*Multiple Box Slicing function
*High speed wheel dressing
*0.001 mm(0.0001) least increment input.

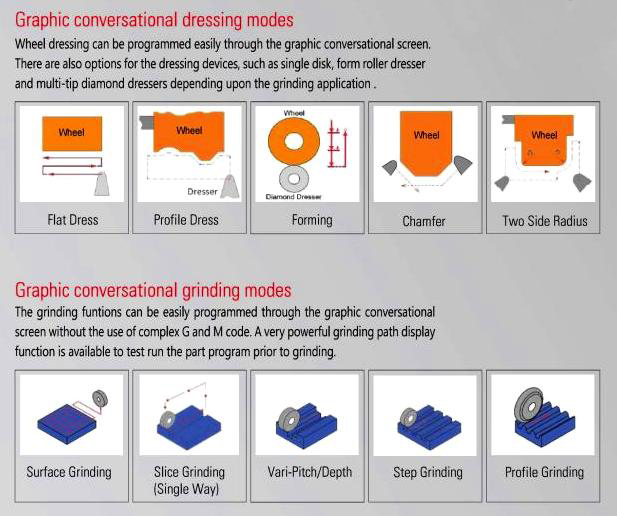

*Graphic conversational programing for Grinding and Dressing with automatic compensation
*Grinding path sim ulation mode by turning MPG
*Graphic grinding path display
*Surface/ Slice/ Crisscross/ Profile grinding modes are standard
*Additional final finish grinding function after cycle end
*Part program can be stored for future grinding purpose
